MG640475

Pitch：6mm
Current rating: MAX15A AC/DC

Voltage rating: MAX300V AC/DC

Temperature range: -40-105

Insulation resistance: 1000MΩ

Series 1806 SERIES
Material Type PCPET/PA66 94V0

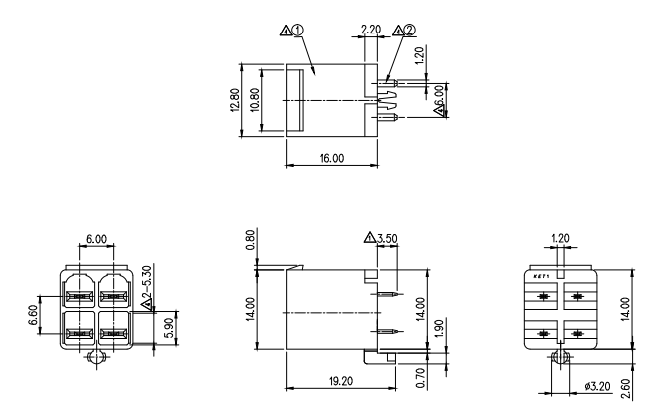

Dimensions 19.3*12.8*14.0
