Hot-selling Terminal Board - SMH200-06H – KEXUN Detail:

❑ Product Specification

AWG28-22

Item                                                      Specification

Operating Voltage                             AC/DC 250V

Current Rating                                     AC/DC 3A

Operating Temperature                   -25℃ ~ +85℃

Insulation resistance                            1000㏁

Withstanding voltage                           No flash over and no physical damage

Contact resistance                                30mΩ MAX

Durability Contact Resistance :          50mΩ MAX

Vibration 1) Contact Resistance :     50mΩ MAX 2) Discontinue : 1μsec MAX

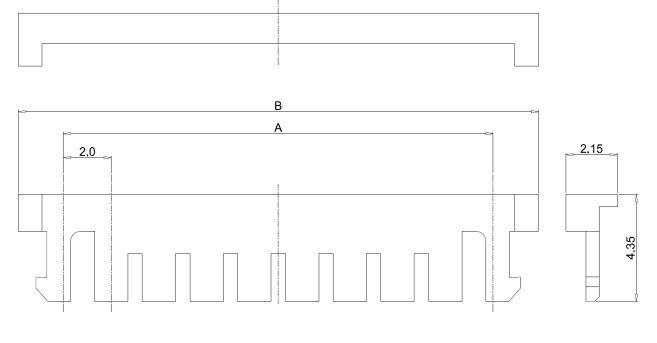

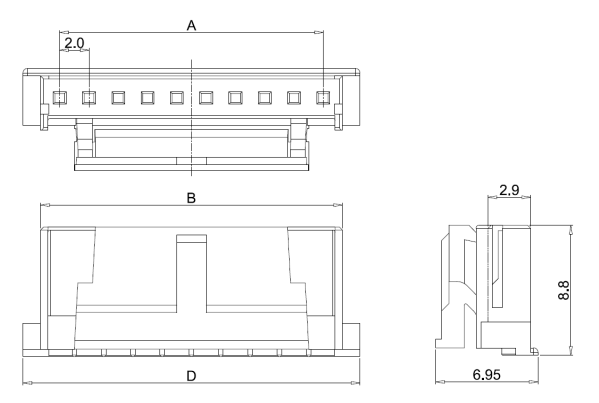

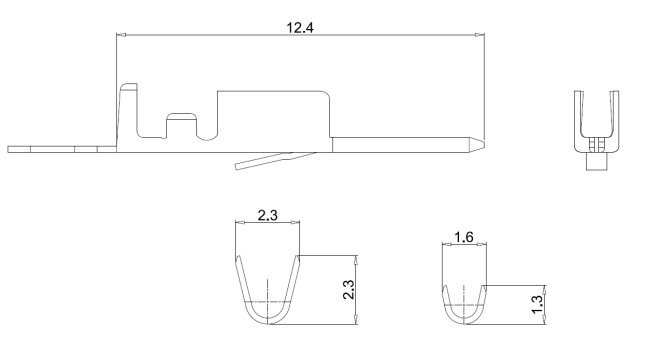

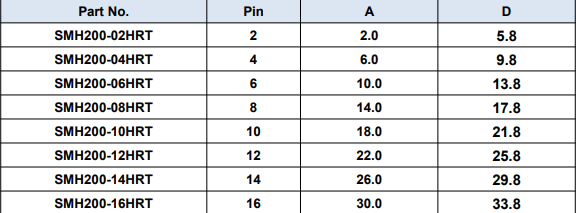

Product detail pictures:

Hot-selling Terminal Board - SMH200-06H –  KEXUN detail pictures

Hot-selling Terminal Board - SMH200-06H –  KEXUN detail pictures

Hot-selling Terminal Board - SMH200-06H –  KEXUN detail pictures
