5557-10R/39012100
Short Description:
PART NUMBER:39012120

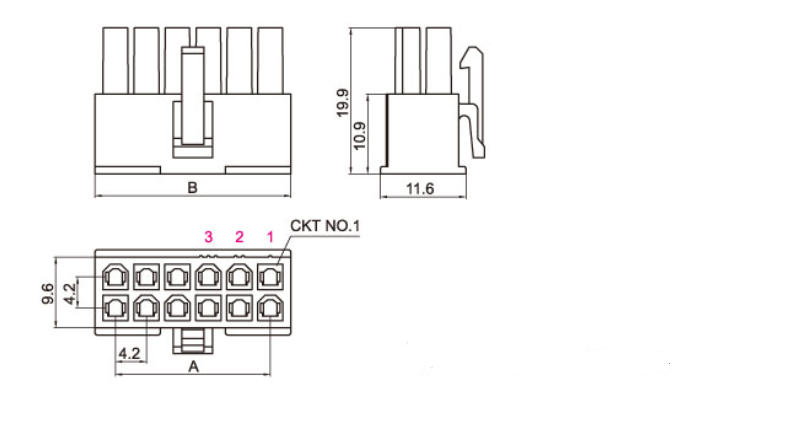

Mini-Fit Jr. Receptacle Housing, Dual Row, 12 Circuits, UL 94V-2, Natural
- Series: 5557(male) 5559(female) Terminal: 5556(female terminal) 5558(male terminal)
- Category: Crimp Housings
| SPECIFICATION | |
| poles:2-24 | |
| applicable wire: awg30#-18# | |
| applicable pc board thickness:1.6-20mm | |
| Temperature range:-25℃-85℃ | |
| voltage rating:300V.Ac/Dc | |
| current rating:9A max | |
| contact resistance: ≤0.015Ω | |
| insulation resistance:≥1000MΩ | |
| Withstand Voltage:1500V.Ac/1min | |
| Material: plug housing:pa66 UL94V2(0) | |
| receptable housing: PA66 UL94V2(0) | |
| terminal:Phos.bronze Tin/plated |
Available below poles:
| 1*2P | 2*1P | 3P | 1*4P | 2*2P | 5P | 1*6P | 2*3P | 2*4P | 2*5P |
| 2*6P | 2*8P | 2*9P | 2*10P | 2*11P | 2*12P | / | / | / | / |
